Description

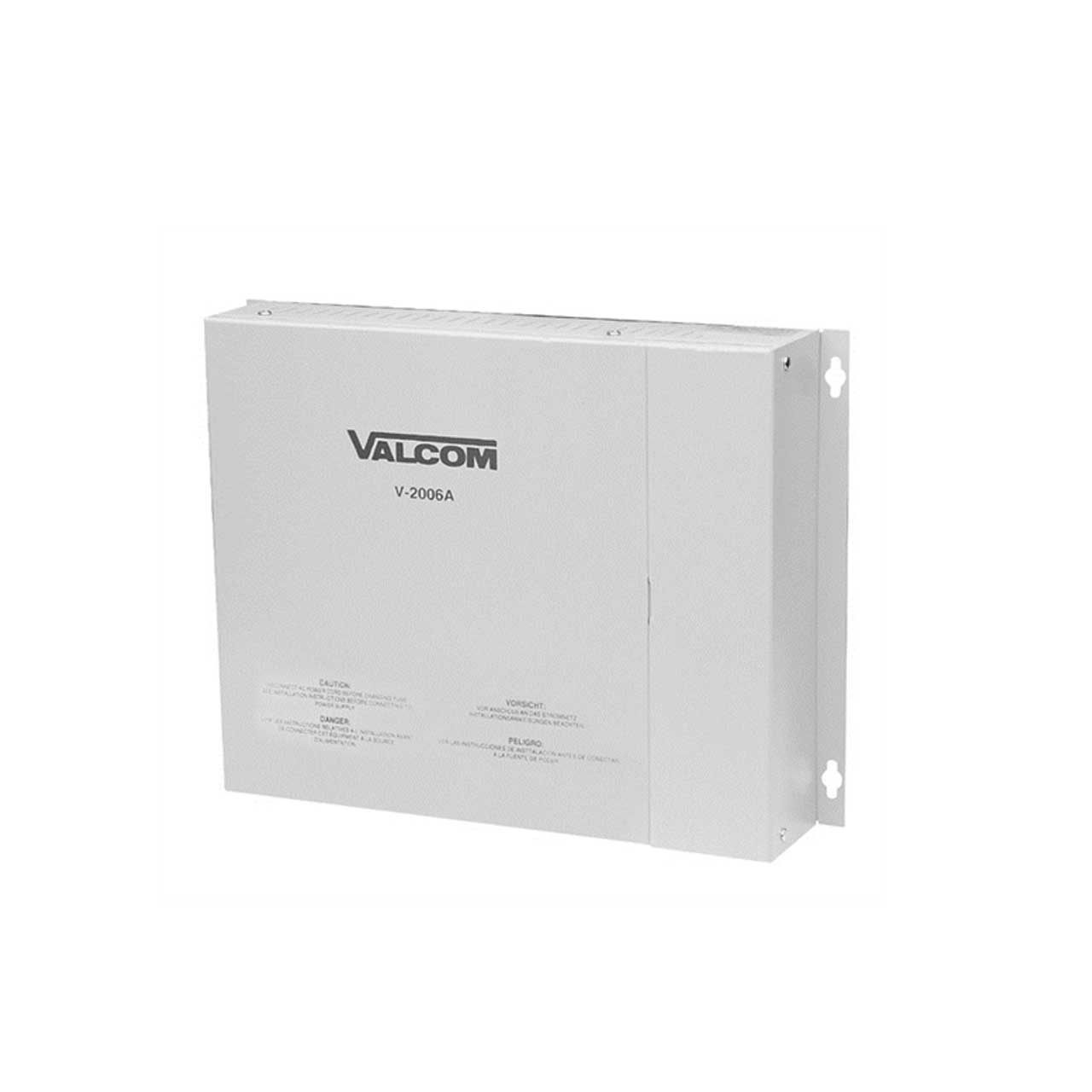

One-Way, 6 Zone Page Control Interface with all call and built-in power; provides background music input which automatically mutes in the zone being paged and a built-in tone generator for night ring, time clock, door bell and includes 3 programmable zone groups. Page override is utilized for priority announcements; battery back-up compatible and expandable to virtually an unlimited number of speakers when used with additional power supplies.
- Provides 6 Zones Of 1 Way Paging
- Interfaces With Telephone System Via A Loop Start/Ground Start C.O. Line Position
- Page Override Input
- Programmable Features Per Zone: Background Music, Tones, Talkback
- May Be Upgraded To Support Talkback Paging with V-9956
- Multiple Units Can Be Interconnected For A Common All Call
- Page Port With Contact Closure Access
- Three Programmable Zone Groups
- May Be Accessed From A Dedicated Single Line Telephone Set
- Standard 66 Blocks Used For Connections
- Built In All Call With Volume Control
- DTMF Operated Auxiliary Contacts Available For Controlling Electric Door Locks
- Dial Tone
- Accepts Pulse Or DTMF Dialing
- Integral Battery Backup Input
- Standard AC Receptacle Powered
- Built-In Power
- Built-In Tone Generator (Single/Warble) With Volume Control
- Dual Line Voltage Ready
- UL/CSA/CE
Dimensions: 10.9″ H x 13.0″ W x 2.7″ D (27.68 cm x 33.02 cm x 6.85 cm)
Weight: 10.0 lbs (4.54 kg)
