Description

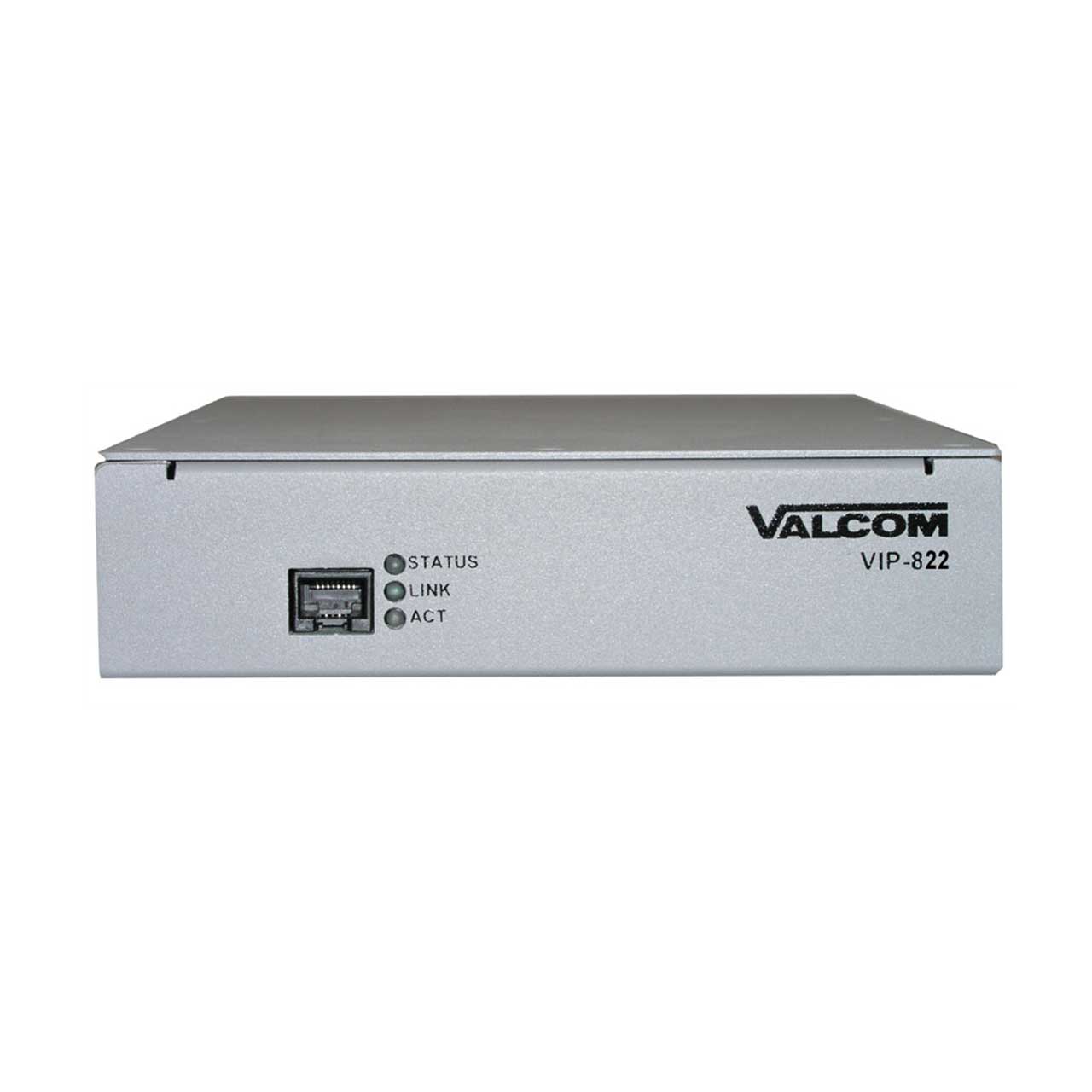

The VIP-822A Networked Trunk Port allows most loop start terminal devices to be connected to a managed IP-based LAN/WAN.
- RJ-45 for network connection
- 2 RJ-11 FXO connections
- 2 RJ-11 failover telephone connections
- Decode Caller ID signals
- Front panel activity LED
- Network activity LEDs
- 2.5mm jack for DC power
- 802.3af compliant
- Peer-Peer, No Server Required
- Auto Destination Programmable
- DTMF Dial Select – 1024 Zones
- 1 to 11 Digit Dial Plans
- Two Way – Transmit / Receive
- POE 802.3af, Class 3, or Local Power 24 VDC
- Can Use DHCP Servers to Acquire IP Addresses
- Easy Windows® Based Setup
- 1 RJ45 Ethernet Connection
- Front Panel Activity LED
- Network Activity LEDs
- Point to Point, Zones, Groups, All Call
- UDP, Multicast
- Caller ID Information – Various Options
Dimensions: 1.75 H x 6.75″ W x 9.5″ D (4.45cm H x 17.15cm W x 24.13cm D)
Weight: 1.75 lbs. (0.80 kg)
