Description
Please note this product has been superseded with the Clever Little Box AVID3 In Wall Amplifier System

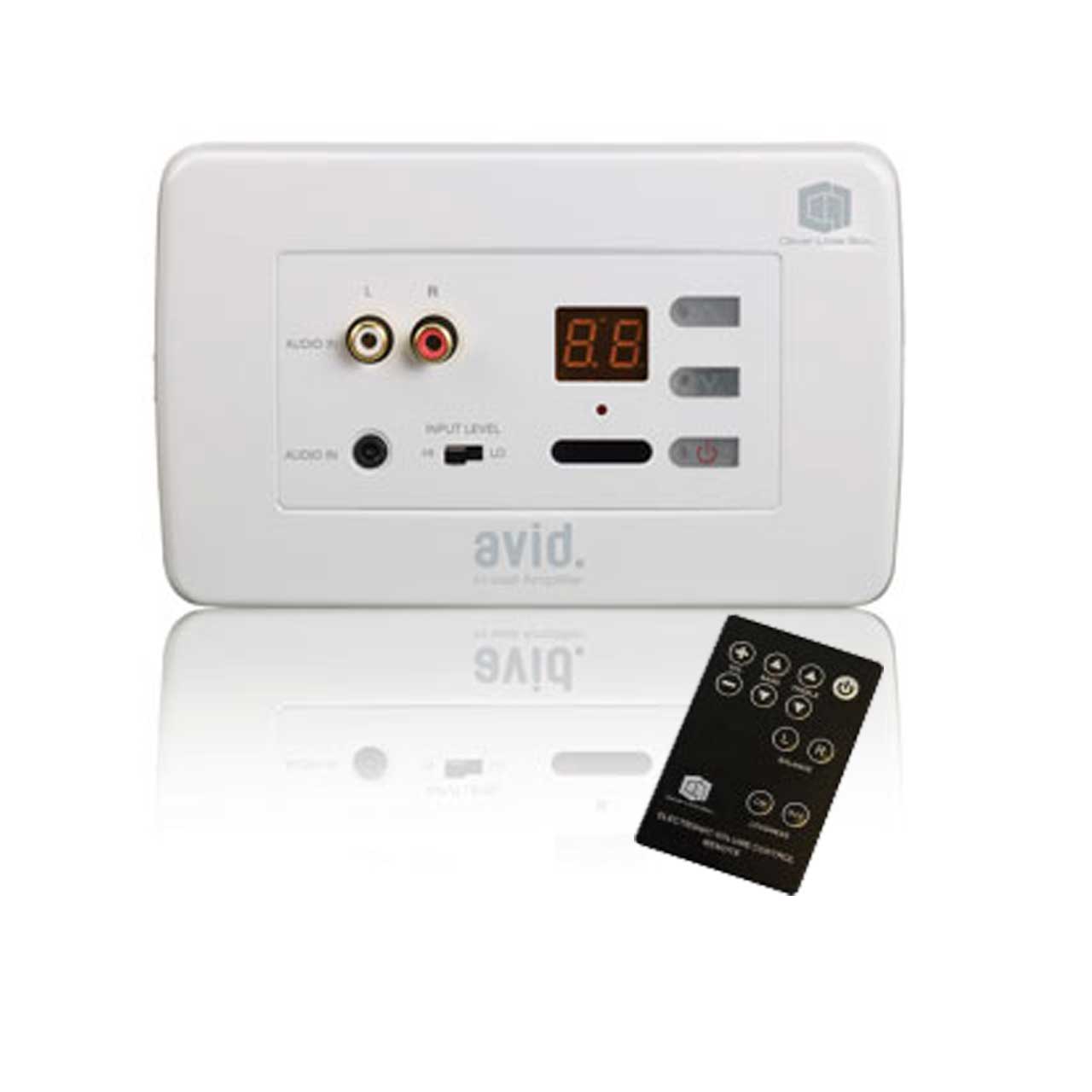

Stylish, but discreet stereo amplifier for in-wall or dado conduit mounting. An ideal solution for AV and single-room voice or sound reinforcement applications.
Features:
- Stereo amplifier fitted to UK 2-gang Wallplate
- New higher power 2 x 12W output (RMS)
- 3 x Input Sources; Stereo Phono, 3.5mm Stereo Jack (Jack has priority) and Wired Input Terminal (on rear PCB)
- Line Level Sensitivity Switch
- Control of ON/OFF and volume via illuminated push buttons located on the front panel
- Infrared remote control of ON/OFF, volume, balance and tone facilities (supplied as standard)
- Clear LED level indicator / setting status display
- Screw terminations on the rear of the unit for loudspeakers, power and wired line input
- Separate loudspeaker balance adjustment to allow system set up (control located on rear of unit)
- Includes Plugtop Power Supply
- Also includes Wallmounted Bracket for remote control
| Specifications: |
| Description: |
|
AVID |
| Output Power |
2 x 12W RMS @ 8 Ohm |
| Line Inputs |
Stereo Phonos (L & R)
Stereo 3.5mm jack (priority)
Screw Terminal (Rear PCB. In parallel with 3.5mm Jack Input)
|
| Frequency Response |
40Hz ~ 20KHz |
| Input Sensitivity |
200mv / 1v |
| Power Requirements |
24v DC, 1.25A |
| Dimensions |
165(W) x 100(H) x 35(D) mm |
| Weight |
0.26kg |
|
